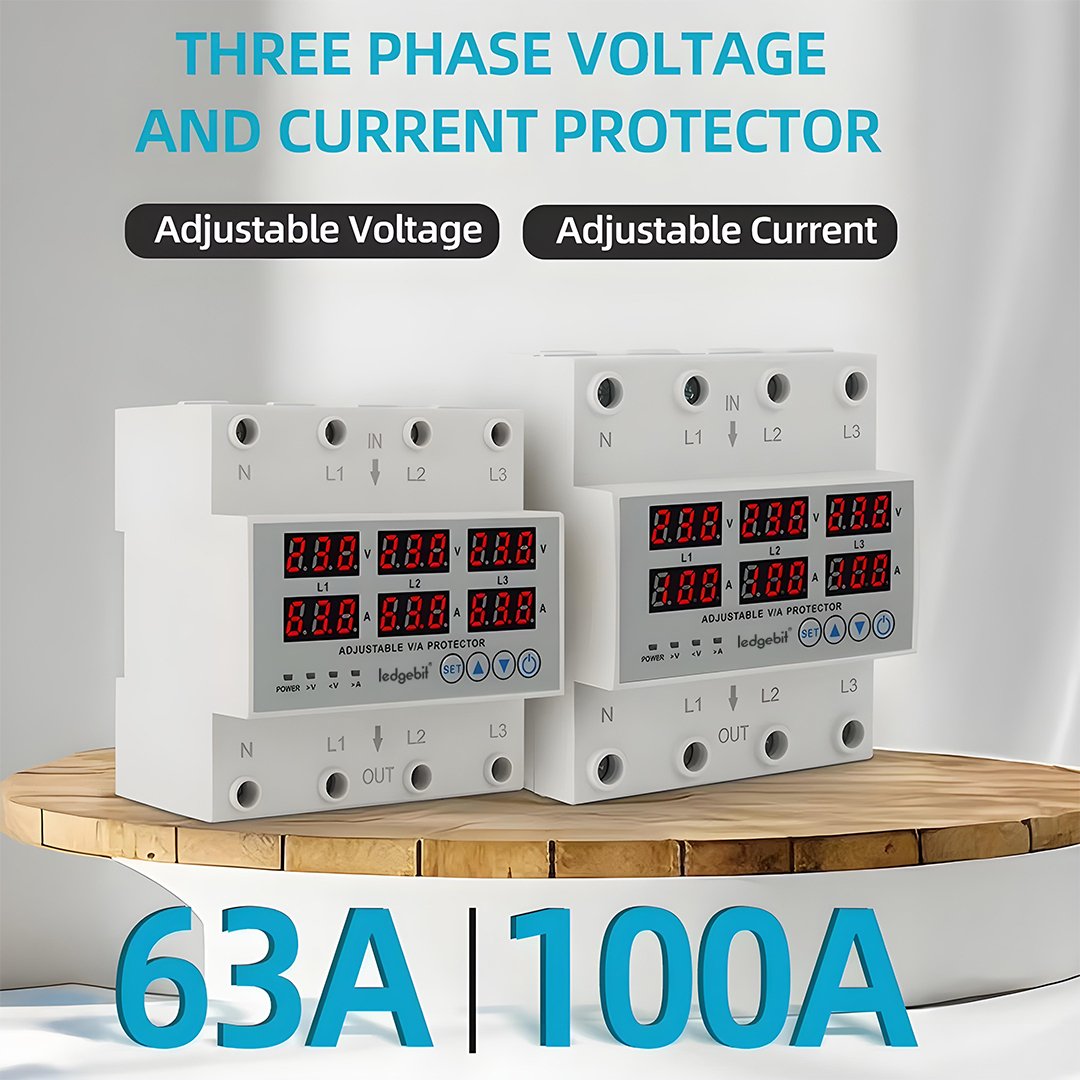

Ledgebit 63A Digital 3-Phase DIN Rail Overvoltage and Overcurrent Protector

The Ledgebit 63A Digital 3-Phase Overvoltage & Overcurrent Protector is designed to protect electrical systems from voltage surges, overcurrent, and power spikes. Whether it’s for residential, commercial, or industrial use, this device keeps your equipment safe and running reliably.

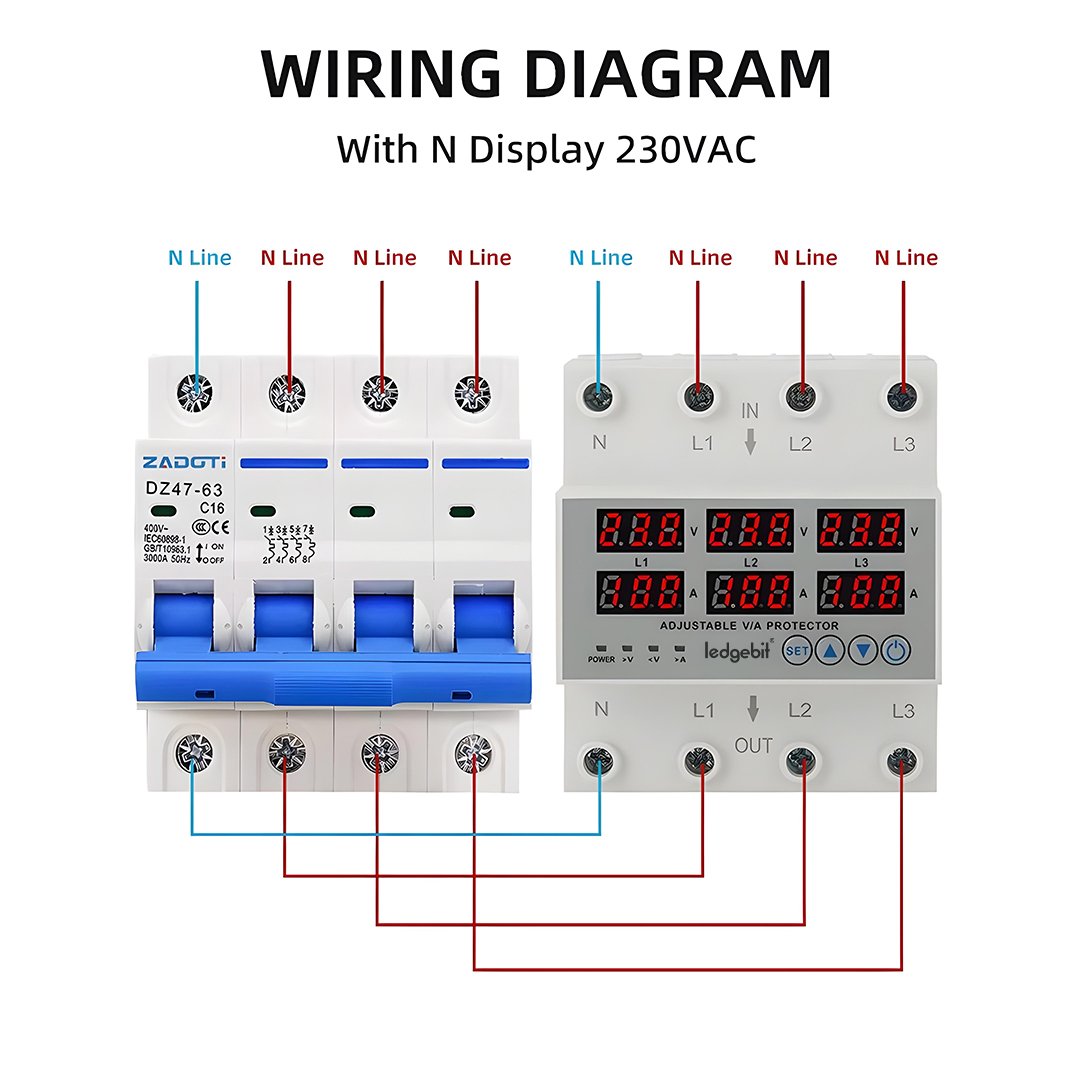

It supports 3-phase systems and can be mounted easily on a DIN rail inside your distribution board or control cabinet. The device monitors all three phases in real-time. If it detects unsafe voltage or current levels, it immediately cuts off the power. Once conditions stabilize, it reconnects automatically. This automatic reset feature eliminates the need for manual intervention and helps prevent long-term damage.

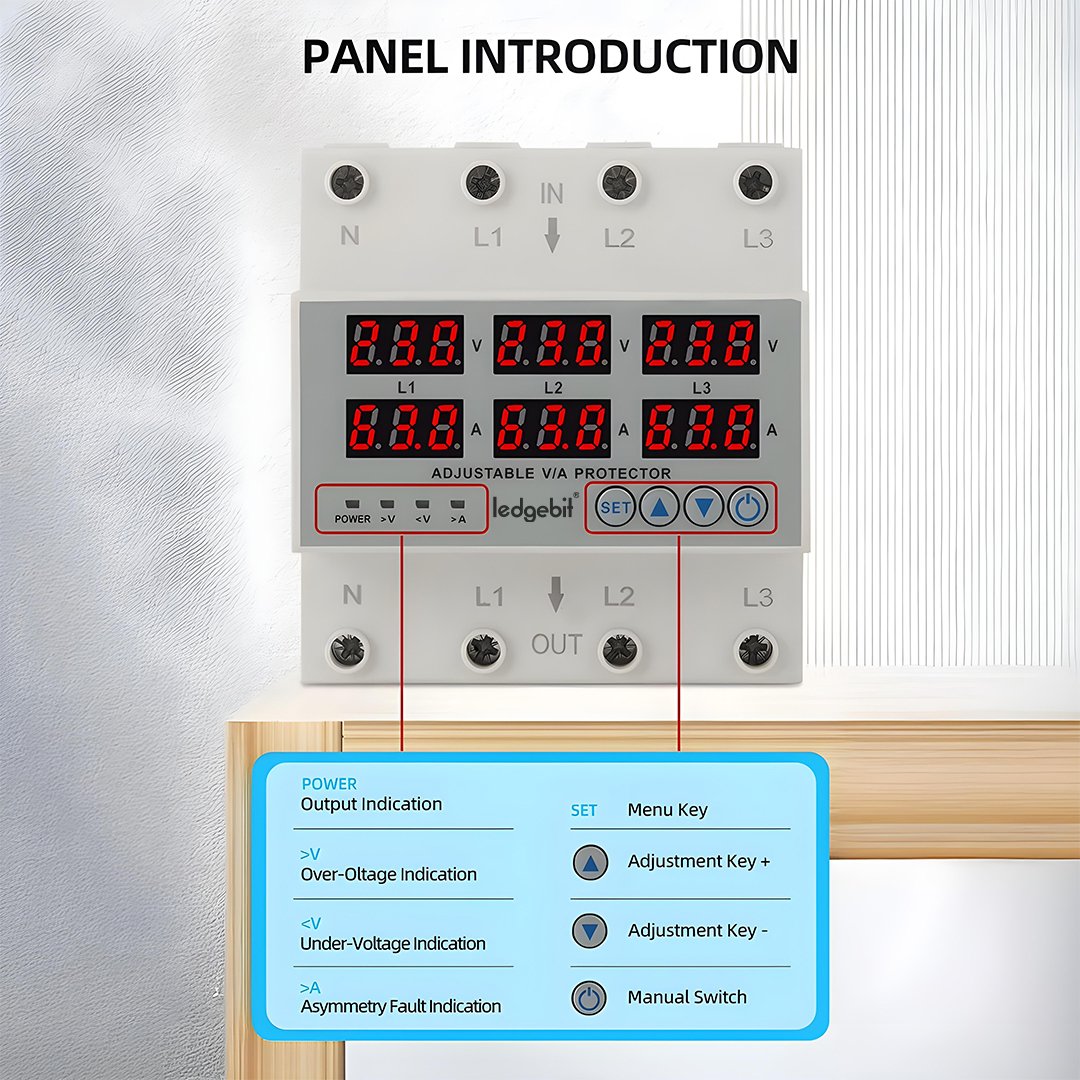

The digital LED display shows real-time readings of voltage, current, and system status. It’s easy to read and allows for quick identification of issues. This helps reduce troubleshooting time and ensures a smoother operation overall.

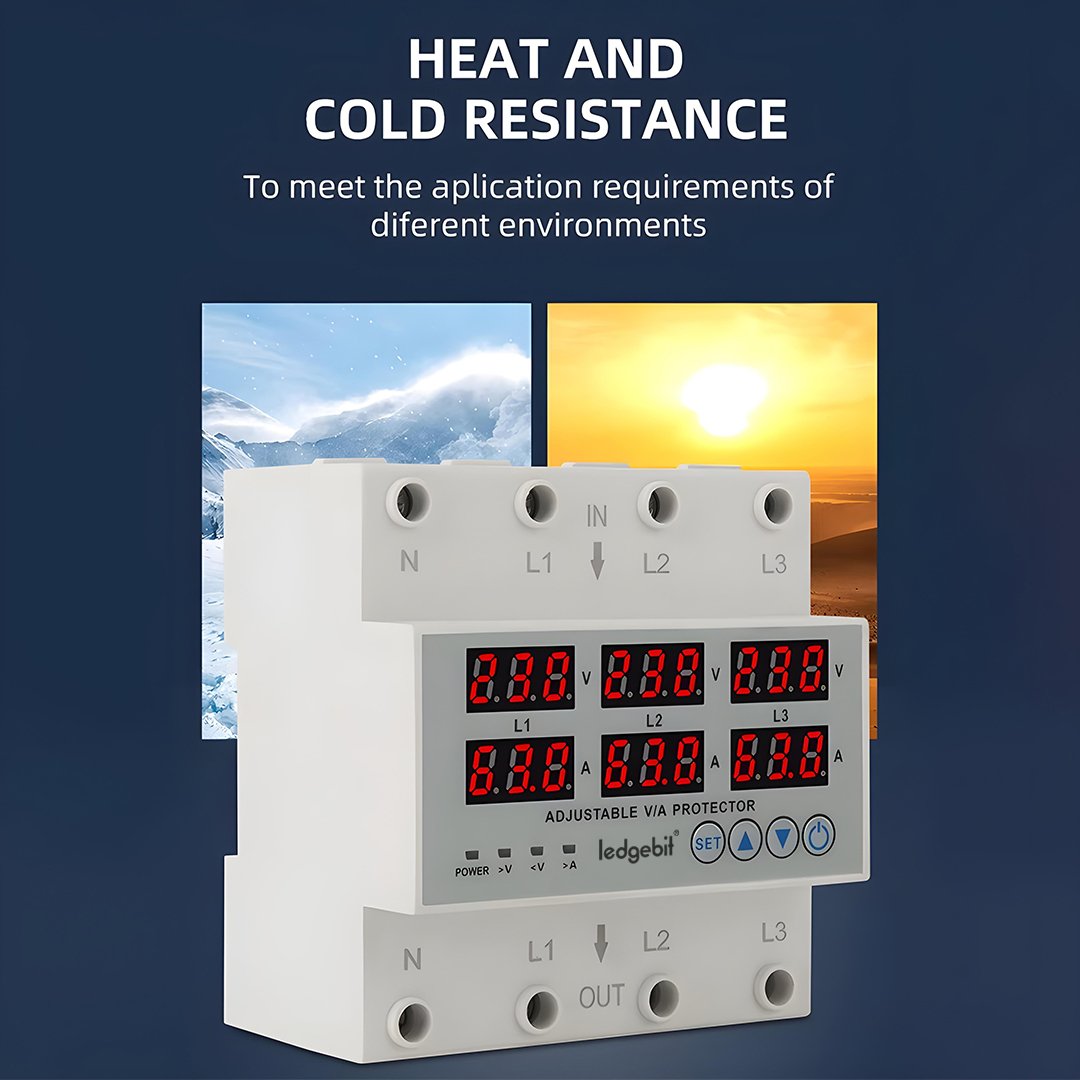

It accepts input voltages between 100V and 400V and handles up to 63 amps. Built with flame-retardant ABS+PC material, the housing ensures safety, durability, and long-lasting performance. The unit works well indoors in conditions from 0°C to 40°C, and humidity between 5% and 90% RH.

This overvoltage and overcurrent protector is ideal for a wide range of equipment. It can safeguard HVAC systems, motors, generators, industrial machines, and electrical panels. It’s especially useful in environments where consistent, clean power is critical, such as data centers, factories, and workshops.

In short, the Ledgebit Overvoltage & Overcurrent Protector offers automatic protection, high durability, and easy installation. It’s a smart choice for anyone looking to upgrade their electrical safety and avoid costly damage from power issues.

Specifications

• Type: Electronic
• Frequency: 50Hz/60Hz
• Display Type: LCD Display

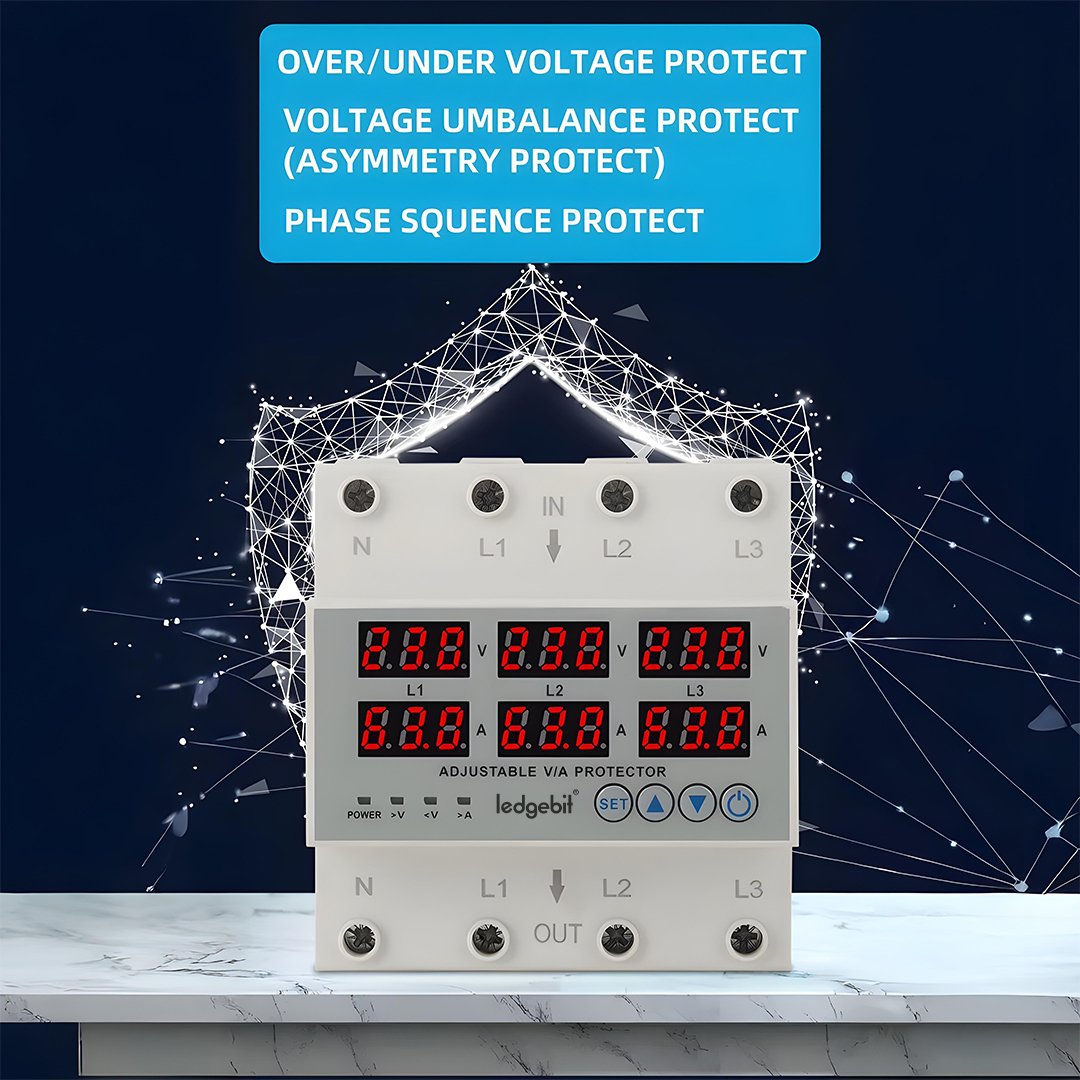

• Protection: Overvoltage, Under and Over Voltage Protection, Overcurrent Protection
• Output Voltage: 220V, 380V
• Input Voltage: 220V
• Color: As pictured
• Display: Digital
• Application: General-purpose
• Efficiency: High efficiency
• Product Weight: 410 grams
